cheapest red Clay brick making machine supplier China

Date: 2020/2/19

       High pressure  Extruder clay brick making machinery



  Extruder

JKY-5

  Spare parts

JKY-8



  Assemble

spares parts-13



    baoshen good quality clay brick machinery company not only provides customer with various fully automatic  High pressure extruder clay brick making machinery,but also provides services like brick making process design of solid brick &hollow brick,brick kiln design and build,brick dryer design and build,brick factory turn key project contract.our company shipping many clay brick machinery to different countries every year.

  Technical specification

    High pressure Extruder clay brick making machinery for clay brick factory



Model

JKB

Production capacity (pieces/h)

10,000~30,000 pieces (standard brick)

Extrusion pressure (Mpa)

≥3.0

Required power (KW)

Upper stage: Y280M-6-45

Lower stage: Y315M-6-90

Vacuum pressure

≥-0.092

Main shaft speed (rpm)

Upper stage: 38rpm

Lower stage: 25rpm

Shaping moisture content (wet basis %)

16 ~ 20

Raw material plasticity index

7 ~ 15

Required reducer

Upper stage: ZLY600D i=10.89

Lower stage: ZLY960B i=15.95

Required V-belt

Upper stage: 7-SPB-4700



Low stage: 9-SPC-5500

Required vacuum pump (water circulation type)

2SK ~ 6 ~ 2SK-12

Required electric motor

Y15 ~ 22KW

Overall dimension mm length × width × height

5,300×5,550×2,510

Clay brick production line

clay brick production line,The brick factory including fully automatic clay brick making machinery for shaping, brick dryer(small tunnel dryer & chamber dryer) for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.

  Raw materials

material-5

 material-1 Good quality autmatic Brick making machine ,clay Brick making machinery including:

No.

clay brick making Machinery

1

Box feeder

2

Belt conveyor

3

Primary roll crusher

4

Belt conveyor

5

Double shaft mixer

6

Belt conveyor

7

High speed roll crusher

8

Belt conveyor

9

Double shaft mixer

10

Belt conveyor

11

Double stage de-airing extruder

12

Vacuum pump

13

Air compressor

14

Auto brick cutting system

15

Belt conveyor (waste brick return to mixer)

16

Control panels

17

V Belt

18

Spare parts

19

dryer

20

kiln



clay brick making process

    High pressure  Extruder clay brick making machinery for brick making process,including many diferent clay brick machinery.

1.taking clay with box feeder ,use belt conveyor to carry clay to roller crusher to crush under 5 mm.

brick making-1

2.crushing clay under 5 mm,with belt conveyor to carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.

brick making-2

3.after fineness roller crusher,the clay is under 3 mm.use beld conveyor to carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with   High pressure  extruder clay brick machinery.

brick making-3

4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the automatic brick cutter to cut piece brick.with different capacity.

brick making-4

 Clay brick factory

factory-8



Baoshen brick making machinery company

Baoshen brick making machinery series products have more than 40 varieties and over 100 specifications.our brick making machine have been exported to countries such as Kazakhstan,Uzbekistan,Kyrgrzstan,Tajikistan,Russia,Nepal ,Sudan,South Africa,Uganda,Mongolia,Argentina,Libya,Peru,Venezuela,Bangladesh and india,etc.have won great fame and popularity.

Production Strength:

1)Baoshen brick making machinery company

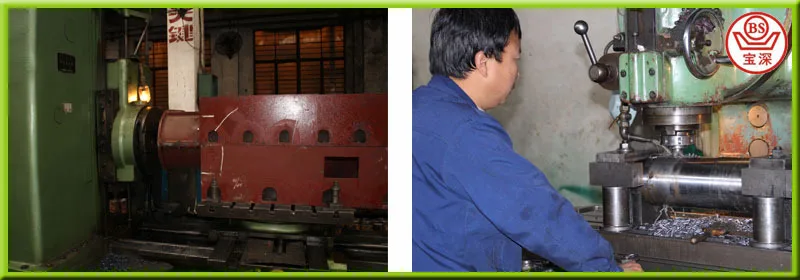

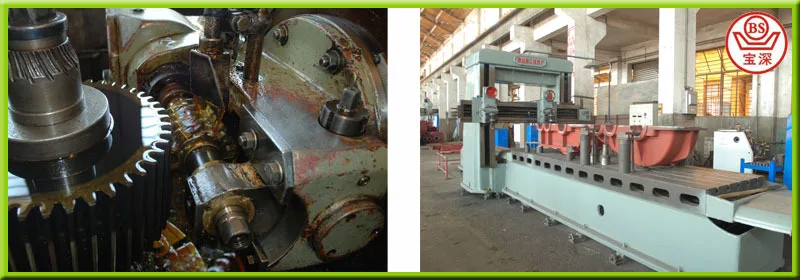

  Maching

machining production workshop to produce clay brick making machinery.



machining-3machining-7machining-12

  Heating

spares parts-16

heat tempering treatment,high-frequency quenching to enhance the hardness of gears,axis,shaft and some other parts of clay brick making machinery.

 baoshen good quality clay brick machinery company not only provides customer with various fully automatic extruder brick making machinery for clay brick making factory.

Advantage:

  High pressure  Extruder clay brick making machinery main body is made from cast iron,main shaft and bearings one-time processing,good stability and long life service.

 1)harden surface gear of   High pressure extruder clay brick making  machinery was adopted in reducer, clutch are a component with own patent,without any shaking during working, even the extruder can working normal without foundation bolts.

  2)the steel material of shafts and gears in clay brick making machinery are adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend  fly ash bricks making machine life.

  3)The spiral cut reamer of  High pressure  extuder clay brick making machinery adopt wear-resistance metal spray painting technology; The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. are all passed the aging, quenching and tempering process.

4)  High pressure  extruder clay brick making machinery features with simple and compact structure, reasonable design, strong applicabilty, lower energy consumption, and high efficiency.  the equipment can work steadily without installing of foundation bolts.

company-26

    Our company  can not only provide various good quality fully automatic  High pressure extruder clay brick making machinery, install clay brick machinery,commossioning.but also provide services like process design, brick dryer for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.We have successively shipping automatic   High pressure  Extruder clay brick machinery,built brick dryer,hoffman kiln of clay brick production line in India, Bangladesh, South Africa etc.

After sale:



1.Being responsible for production line design, installation, debugging and worker training.



2.supply technical instruction for the foundation, brick dryer,kiln building etc.



3.providing technical support and after sales service at the most speedy manner.



4.Training the factory worker for machine maintenance, operation skill.



5.provide all best clay brick machinery for making wet bricks,such as box feeder,roll crusher,clay mixer,  High pressure extruder,automatic brick cutter ,etc.



6.provide all clay brick machines for dryer,hoffman kiln and tunnel kiln.



video:



http://www.china-baoshen.com



http://www.youtube.com/watch?v=s7l3YJ_uSzI&feature=relmfu
