2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Date: 2019/9/16

    Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

 This Extruder is an extruding & shaping device for solid & hollow brick production line. It is suitable for solid bricks with highly ratios hole.

It has been named excellent product by national authority department. It is exported to India, Bangladesh, Uzbekistan and so on, and gaining the high appreciation.

 2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Product characteristic

  • Lower cost ----Compact structure. Cost-effective.
  • Reliable performance ----It is controlled by air clutch, sensitive, convenient and reliable of operation.
  • Stronger adaptability ----It’s applicable for the production of high-rate hollow bricks with the materials of coal gangue, fly-ash, shale, urban construction waste, gangue waste, inferior soil and etc.
  • High efficiency  ----Production Capacity: 15000-25000 p/h
  • Longer operation lifetime ----The machine adopts high quality bearing, guarantee the machinery lifetime. & Gears of reducer are hard tooth surfaces.
  • Simple daily maintenance ----Maintenance Cycle : One or two times every month.

Mixing paddle and lower stage auger of brick making machine



2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Upstage auger and clay spliter of brick making machine

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Clay press plate and Barrel liner of brick making machine

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Technical specification of series of brick making machine.



Model

Capacity

Power

weight

size

(pcs/hour)

(KW)

(ton)

(mm)

JKY60/60-40

13000~20000

90*/250*

25

7500×3300×2800

JKY60/55-40

25

7500×3300×2800

JKY55/55-40

12000~17000

75*/185*

16.5

7200×3300×2600

JKY50/50E-40

11000~15000

55*/160*

15

7200×3300×2600

JKB50/50B-38

11000~15000

55*/160*

13.5

6750×1880×2540

JKB50/50B-35

11000~16000

55*/132*

12.5

6750×1880×2540

JKB50/50C-32

11000~16000

55*/132*

12

6750×1880×2540

JKB45/45D-35

10000~13000

45*/110*

11.3

6370×1910×2350

JKB45/45F-30

10000~14000

45*/90*

11.3

6210×1560×2350

JKR40/40F-25

8000~12000

37*/75*

9.6

5660×1680×2150

JKR35/35D-20

7000~9000

30*/55*

7.5

5040×1600×2000



Brick making machine can make many different solid bick and hollow bricks.

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine



Brick making machine in production

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

Mechanical treatment of all parts of brick making machine

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine



Flow chart of brick production line

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine





clay brick production line:

   cheap clay brick making machine for clay brick making factory ,clay brick production line

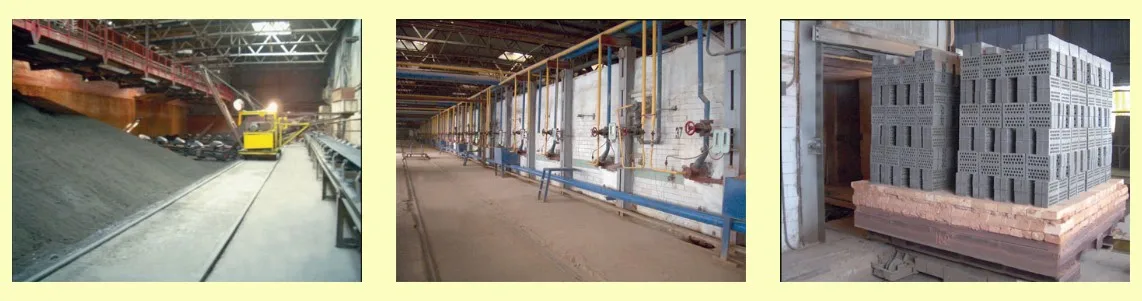

    The brick factory including fully automatic clay brick making machine for shaping, brick dryer(small tunnel dryer & chamber dryer) for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.

 Good quality autmatic Brick making machine ,cheap clay Brick making machine including:

No.

clay brick making machine

1

Box feeder

2

Belt conveyor

3

Primary roll crusher

4

Belt conveyor

5

Double shaft mixer

6

Belt conveyor

7

High speed roll crusher

8

Belt conveyor

9

Double shaft mixer

10

Belt conveyor

11

Double stage de-airing extruder

12

Vacuum pump

13

Air compressor

14

Auto brick cutting system

15

Belt conveyor (waste brick return to mixer)

16

Control panels

17

V Belt

18

Spare parts

19

dryer

20

kiln

clay brick making process

   cheap clay brick making machinefor clay brick making process,including many different clay brick machinery.

1.taking clay with box feeder ,belt conveyor  carry clay to roller crusher to crush under 5 mm.

2.crushing clay under 5 mm, belt conveyor carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.

3.after fineness roller crusher,the clay is under 3 mm. belt conveyor  carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with Automatic extruder ,Automatic clay brick making machine.

4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the automatic brick cutter to cut piece brick.with different capacity.

2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

     Our company  can not only provide various good quality automatic extruder,cheap clay brick making machine for clay brick making factory, install clay brick machinery,commossioning.but also dprovide services like process design, brick dryer for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.

cheap clay brick making factory layout



2019 Autoatic red brick making machine Solid clay brick machine Low cost auto clay brick machine

After sale:

Before-sale services:

(1) tell customer how to build new brick factory, including clay brick making machine, drying and firing.(Confirm clay,power electricity,water,land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) provide the offer, flow chart, and detail specification of each clay brick making machine

In-Sale services:

(1)Quality of clay  brick making machine control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:

(1) We will send the technicians about clay brick making machine to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for brick machine, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation 4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication Fired Fully Automatic Clay Bricks and Blocks Machinery.
