build new clay brick tunnel kiln clay brick machinery

Date: 2019/8/5

    build new clay brick tunnel kiln  clay brick machinery

    automatic clay brick machinery for clay brick production line applies to clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.

  export new clay brick tunnel kiln with clay brick machinery produce different bricks like clay solid bricks and clay hollow bricks.

2020 new RED clay brick



Baoshen brick machine company

     Baoshen clay brick machinery series products have more than 40 varieties and over 100 specifications.our brick making machine have been exported to countries such as Kazakhstan,Uzbekistan,Kyrgrzstan,Tajikistan,Russia,Nepal ,Sudan,South Africa,Uganda,Mongolia,Argentina,Libya,Peru,Venezuela,Bangladesh and india,etc.have won great fame and popularity.

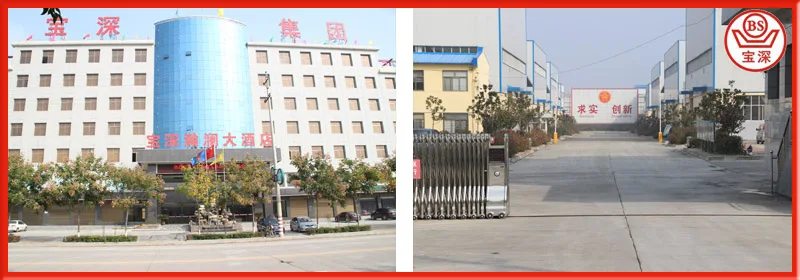

Production Strength:

1)Baoshen clay brick machinery company

2020 new RED clay brick2020 new RED clay brick



    Baoshen good quality clay brick machinery company not only provides customer with various fully automatic brick machine for design and build export new clay brick tunnel kiln with clay brick machinery,but also provides services like brick making process design of solid brick &hollow brick,brick kiln design and build,brick dryer design and build,brick factory turn key project contract.l

Best clay brick production line

  Baoshen brick machine for design and build export new clay brick tunnel kiln with clay brick machinery,clay brick production line

      Technology  Time

Raw material procedure

Forming procedure

Drying procedure

Burning procedure

Annual working hour

2400

2400

7200

7200

Annual working day

300

300

300

300

Daily working hour

8

8

24

24

     clay brick making  factory including fully automatic clay brick machinery, brick dryer(small tunnel dryer & chamber dryer) for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.

      Baoshen Brick machine in one build supply design and build export new clay brick tunnel kiln with clay brick machinery including:

Brick making machinery

No.

Machinery

Model

Power   (KW)

Qty.

Unit

1

Box feeder

XGD80×450

7.5*

1

set

2

Belt conveyor

DS 60×10m

4

1

set

3

Primary roll crusher

SGP70×50

15*×2

1

set

4

Belt conveyor

DS 60×10m

4

1

set

5

Double shaft mixer

SJ360×36B

55

1

set

6

Belt conveyor

DS 60×10m

4

1

set

7

High speed roll crusher

GS80×60B

22*×2

1

set

8

Belt conveyor

DS 60×16m

5.5

1

set

9

Double stage de-airing extruder

JKB50/50C-32

55*+132*

1

set

10

Vacuum pump

MH-2/150

7.5

1

set

11

Air compressor

VW-0.3/10

3

2

set

12

Auto brick cutting system

ZTP-E

7.5

1

set

13

Belt conveyor (waste brick return to mixer)

DS 60×16m

5.5

1

set

14

Control panels

1

set

Total amount

241.5

17



clay brick making process

   good quality clay brick machinery for brick making process in supply to build  and design export new clay brick tunnel kiln with clay brick machinery,including many different clay brick machinery.

1.taking clay with box feeder ,belt conveyor  carry clay to roller crusher to crush under 5 mm.



2.crushing clay under 5 mm, belt conveyor carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.



3.after fineness roller crusher,the clay is under 3 mm. belt conveyor  carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with High pressure extruder clay brick machinery



4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the fully automatic brick cutter to cut piece brick.with different capacity.



5.after cutting bricks,manual stacking wet bricks on to dryer car, The dryer cart is sent to the inlet of drying chamber by ferry cart.

6. Dry the unfired brick in small tunnel dryer and the heat source comes from the residual heat of tunnel kiln.

7. After drying in small tunnel drying chamber, the unfired bricks are unloading to belt conveyor,and then manual stacking dried bricks from belt conveyor to tunnel kiln car.



8. pulling kiln cars on the rail way to tunnel kiln,ferry pusher car push the kiln car into tunnel kiln.



9.firing 24-30 hours,pushing one kiln car half hour, the tunnel kiln work circulate ,getting finished bricks half hour,due to your capacity.



10. after firing well,automatic unloading finished bricks from tunnel kiln car to the finished bricks yard.

2020 new RED clay brick2020 new RED clay brick2020 new RED clay brick2020 new RED clay brick2020 new RED clay brick2020 new RED clay brickDesign and build export new clay brick tunnel kiln with clay brick machinery

        Adopt small tunnel dryer&tunnel kiln and mechanical production process of second setting & burning.

1. Raw material & fuel preparation and handling

2. Molding

3. Drying

1)Dry the unfired brick in small tunnel dryerand the heat source comes from the residual heat of tunnel kiln.

4. Burning

1)The burning adopts tunnel kiln. After drying in small tunnel drying chamber, the unfired bricks are sent onto tunnel kiln car by the belt conveyor, workers stack the bricks into the tunnel kiln car for burning. The burning adopts coal combustion sintering method. The correspondent fume extraction system, cooling system, temperature & pressure measurement system and control regulating system are arranged in tunnel kiln for preheating, burning and cooling to guarantee the work performance of tunnel kiln for clay brick factory.

2)The properly burned bricks are sent onto the Finished brick area by automtic unloading brick system and then, When unloading bricks, the spoiled bricks should be picked out and the finished good products of brick should be piled up in tidiness for sale.

2020 new RED clay brick2020 new RED clay brick2020 new RED clay brick2020 new RED clay brick

Design and build export new clay brick tunnel kiln with clay brick machinery area

The plant floor area is not less than 18,000m2.

The building area is not less than 1,500m2.



Design and build export new clay brick tunnel kiln with clay brick machinery layout

2020 new RED clay brick

After sale

Before-sale services:

(1) tell customer how to build new brick factory, including clay brick  machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) provide the offer, flow chart, and detail specification of each clay brick machinery.

In-Sale services:

(1)Quality of clay  brick machinery control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:

(1) We will send the technicians about clay brick  machinery to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for brick machine, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation 4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication Fired Fully Automatic Clay Bricks and Blocks Machinery.
